Geometry Barn Raising at ALCS — 2016


Linda Dodd-Nagel, her 8th-grade math students, Tae Cooke, and Chris Hill surround the runcitruncated hypericosahedron
Linda Dodd-Nagel (far right), her 8th-grade math students, Tae Cooke, and Chris Hill surround the Zometool model of a runcitruncated hypericosahedron in the Allegany-Limestone Central School library. Photo by Danny Bush.

On May 20 and 24, 2016, Linda Dodd-Nagel’s awesome 8th-grade math students at Allegany-Limestone Central School built a remarkable geometric structure using a construction system called Zometool. The structure, standing six and a half feet tall and containing 12,540 pieces, represents a three-dimensional “shadow" of a four-dimensional figure called a runcitruncated hypericosahedron. The construction was directed by Dr. Chris Hill.

The project was made possible by a generous donation by SBU alum Robert Crowley, Class of '71.


Building the "modules"

On May 20, the students in Mrs. Dodd-Nagel's four math classes completed the first of two stages of construction: building the 75 "modules" that would be assembled during the second stage. The modules were assembled in Mrs. Dodd-Nagel's classroom. The students, many of whom had never worked with Zometool before, did an AMAZING job.

Each module was a polyhedron called a rhombicosidodecahedron. The modules came in five varieties, according to how "squashed" they were by the projection from four to three dimensions. The first variety was not squashed at all, the second was slightly squashed, the third was more squashed, the fourth was even more squashed, and the fifth was completely flat.


A student shows the half of a module she had built.
A good strategy for building a module is to build the top and bottom halves,
which are identical, and then...

Two students work together to complete a module.
...connect them.

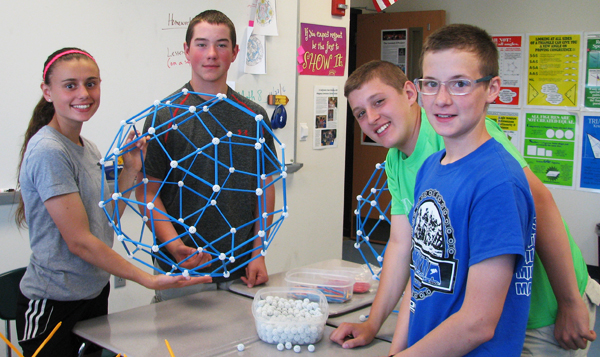

Four students show the center module of the structure.
Exactly one of the 75 rhombicosidodecahedra is not compressed by the
projection from four to three dimensions. It forms the center of the final structure.

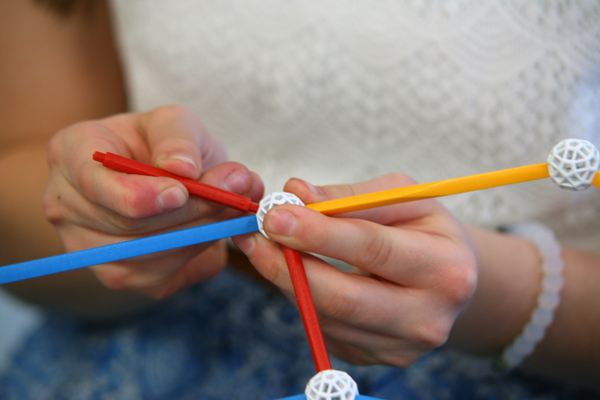

Close up of a student's hands as she attaches struts to a node.
By a wonderful coincidence, the shape of the white Zometool nodes is
the same kind of polyhedron as the modules the students were building:
a rhombicosidodecahedron.

Two students build modules. In the background, shelves are filled with modules completed by earlier classes.
Four of Mrs. Dodd-Nagel's classes contributed to the construction. Later
classes were surrounded by the fruits of the labors of the earlier classes.

Principal Pecorella puts a module on his head.
Principal Pecorella has a head for geometry.

The Barn Raising

On May 24, about ten of Mrs. Dodd-Nagel's students assembled the 75 modules in the library to complete the project.


Mr. Cooke and Cassandra build a base for the final structure.
The bottom was assembled first, so that a base could be added to strengthen the structure. Tae Cooke (from the SBU Department of Physics) designed the base. Mr. Cooke and Cassandra built the base using white struts so that the base could be distinguished from the structure itself. Without a base to buttress it, the completed structure would collapse under its own weight.

Taylor, Chloee, and Ryleigh put the center module in place.
Taylor, Chloee, and Ryleigh put the center module in place. Then the remaining modules were attached in four highly symmetric "layers." Two modules were connected pentagon to pentagon with five identical struts, creating a pentagonal prism, except for the flat modules in the outermost layer, which were connected to each other with three identical struts.

Several students work on the structure.
As the structure grew, many people could work on it at the same time.

Chloee works alongside Mrs. Dodd-Nagel.
Chloee works alongside Mrs. Dodd-Nagel.

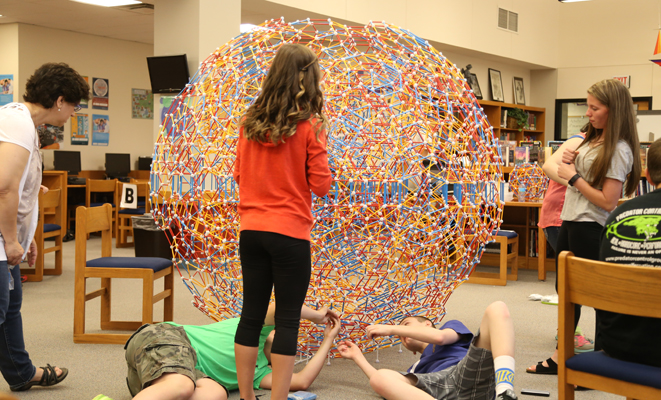

Students work all around the structure.
When it neared completion, the structure was taller than everyone working on it.

Taylor, Dr. Hill, and Brandon work together to complete the top.
Standing on chairs, Taylor, Dr. Hill, and Brandon work together to complete the top.

A view of Dr. Hill through one of the pentagonal tunnels.
Greetings from across the fourth dimension! The Zometool model of a runcitruncated hypericosahedron has numerous tunnels, including six pentagonal tunnels such as this this one. The group photo at the top of this page was taken by aiming a camera equipped with an ultra-wide-angle lens down one of the pentagonal tunnels.

Displaying the Structure

Mrs. Dodd-Nagel displayed the structure at the ALCS Arts Festival. Subsequently, the Olean Mall kindly permitted us to display it at the mall's center court for a few weeks to allow the public to enjoy the students' incredible accomplishment.


For More Information

For more about mathematics outreach at St. Bonaventure, please contact Dr. Chris Hill. To learn more about Zometool, see Dr. Hill's page of Zometool Resources.
